SiloDrill

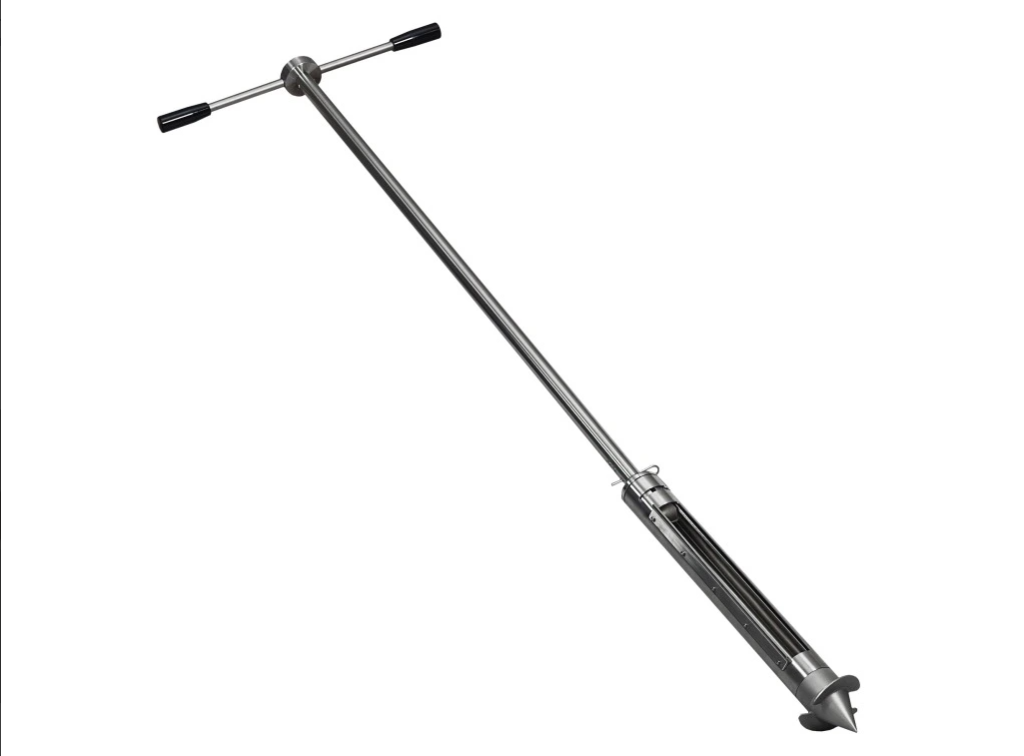

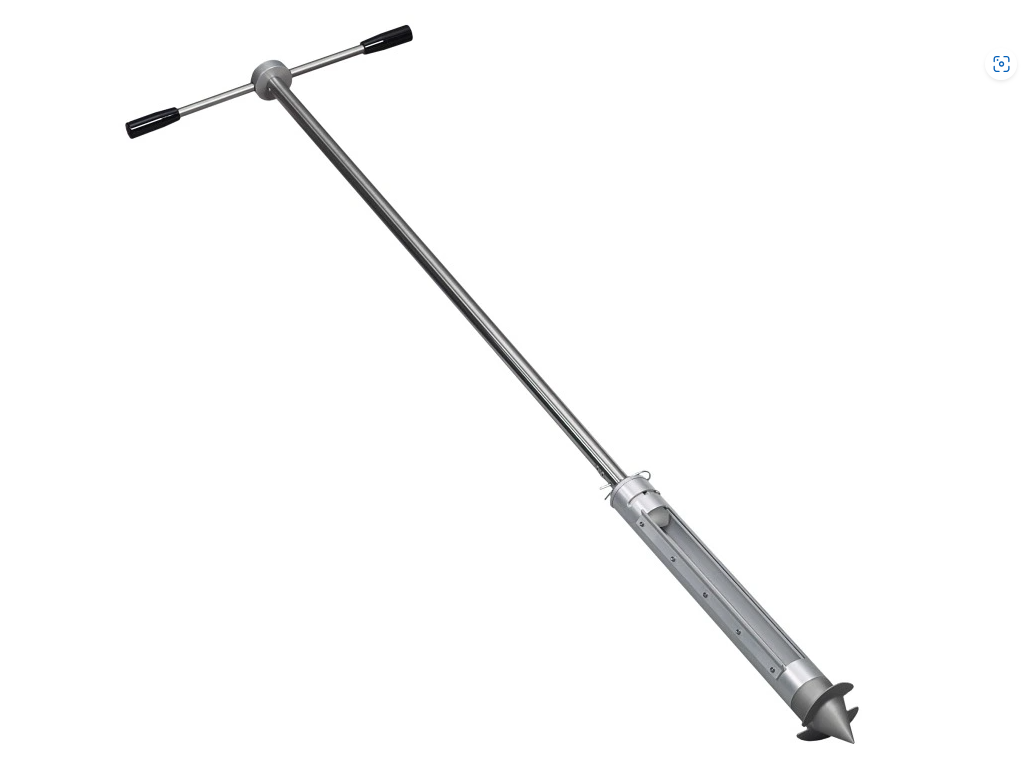

SiloDrill – aluminium
At a glance
- Of aluminium (stainless steel AISI 304 (1.4301))
- Standard length 150 cm, extendable in increments of 100 cm, max. 350 cm
- Sprung inner tube prevents jamming of coarse grains
- Scraper edge for cohesive substances
- Sturdy, removable T-handle

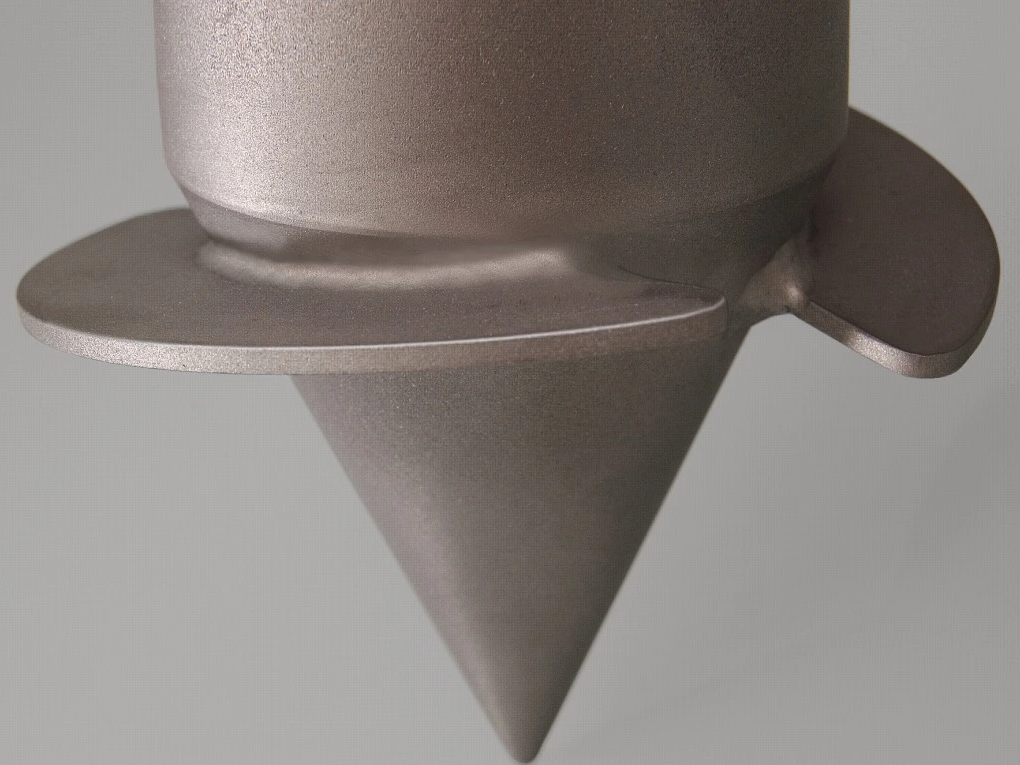

- Drill tip with drilling blades for easy boring
- Easy removal of the sample chamber, simple cleaning
If bulk goods are transported over long distances (in trucks, railway goods wagons), separation may occur. Taking the sample just from the surface therefore leads to the wrong result.

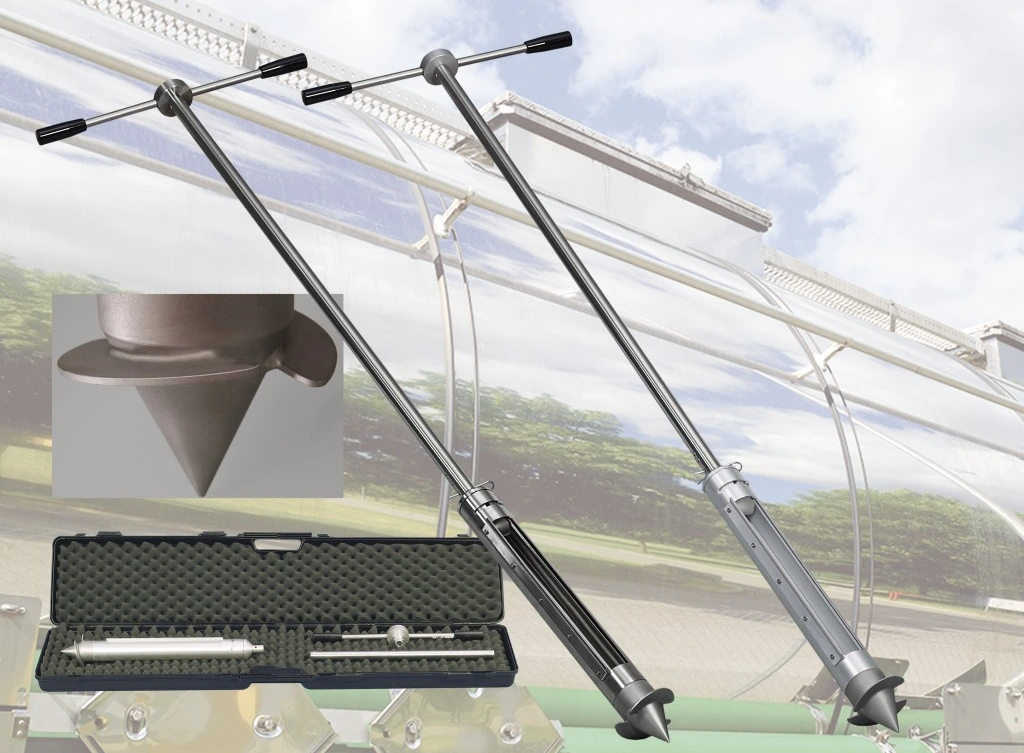

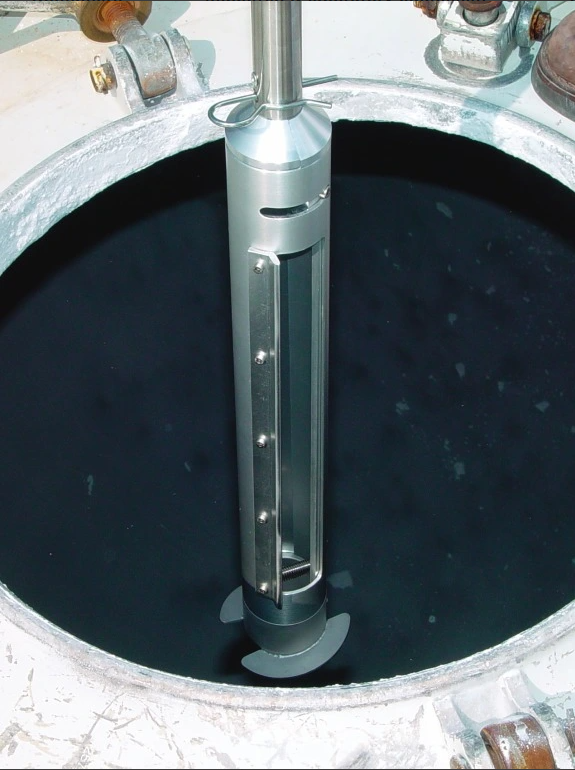

Representative samples from all layers of the silo can be taken with the SiloDrill. The SiloDrill fits through all standard openings with its diameter of 90 mm.
Version
|
Item number |
5301-1000 |
5301-2000 |
|
Material |
aluminium |
AISI 304 |
|
Total length |
150 cm |
150 cm |
|
Spiral screw dia. |
90 mm |
90 mm |
|
Chamber dia. |
40 mm |
40 mm |
|
Volume |
400 ml |
400 ml |
