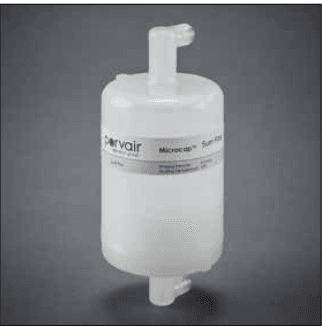

The Microcap Plus is a large capsule filter for inkjet
systems with high throughput. The Microcap+TM is
available in various sizes and contains up to 100%
more filter media than our standard Microcap
capsule filters, whilst still retaining a compact housing
design. Suitable for use for solvent, water-based, or
UV inks. Can be used as a damper to prevent pump
pulsing.
PolyfilTM and KlearfilTM Filter Media
Our PolyfilTM media benefits from a high pleat
construction and a large surface area which offers
a high flow rate and a minimal pressure drop, with
focused spectrum particle removal properties.
Our KlearfilTM media has 8 graded filtration layers
allowing for wide spectrum particle removal, gel
retention and a high dirt holding capacity. The deep
filter pack also demonstrates minimum distortion under
pressure and a long service life.
Ordering Information
Typical Applications
• Inkjet
Specifications
Filter Code
8165
Materials of Manufacture
Filter media: Polypropylene
Housing material: Polypropylene
Micron Rating
0.5, 1, 3, 5, 10, 20, 40μm
Dimensions
Filter length: 95mm (3.74”) (plus connectors)
Filter width: 55mm (2.17”)
Filter Area
350 – 1000 cm2 (54.25-155 in 2 )
Connectors
¼" and 6mm Jaco® 90° elbow connector
Maximum Operating Pressure
6bar (87psi)
Operating Temperature
From 0ºC to 50ºC (32ºF to 122ºF
