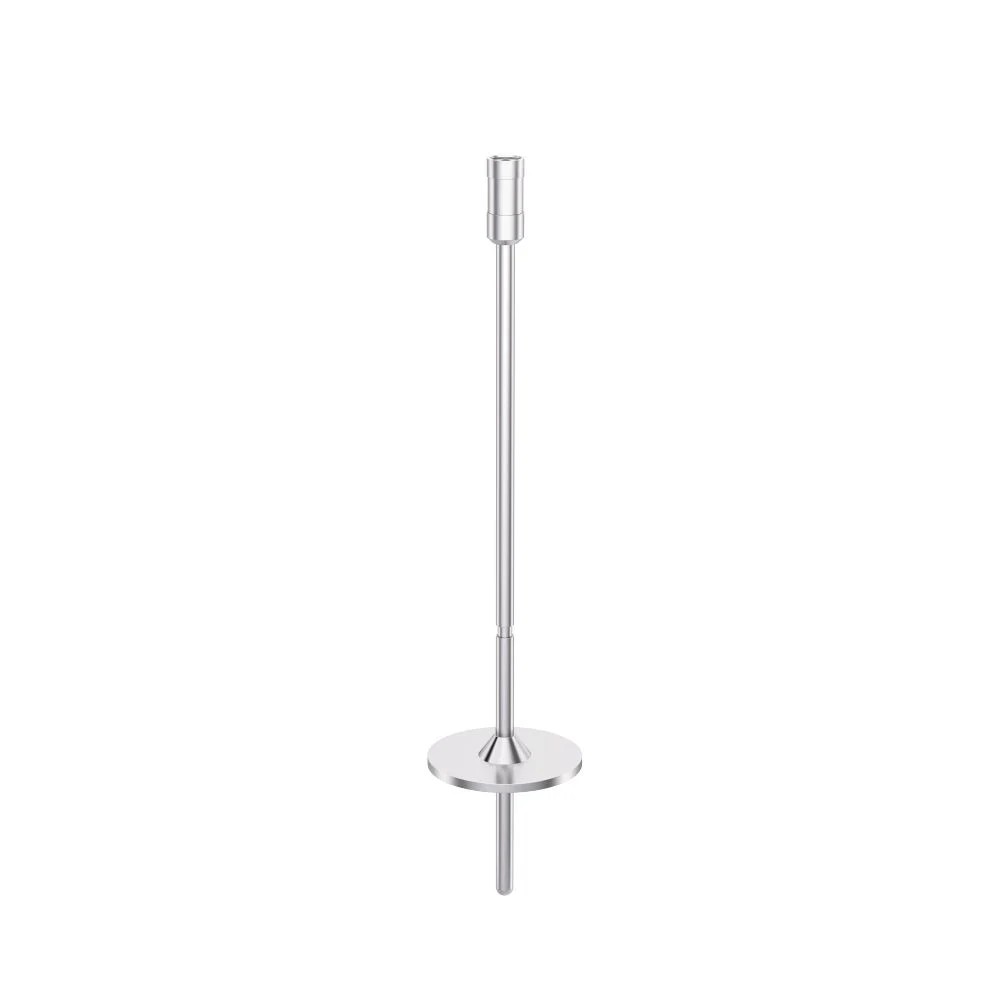

SP-9
Technical Data
| Spindle geometry | Disc |
| Connection | Thread M2.5 LH |
| Quick plug connector | yes |
| Hook connector | yes |
| Diameter | 27.3 mm |
| Immersion depth | 49.2 mm |
| Spindle length | 133 mm |
| Mounting Bracket | yes |
| Sample container: | 600mL beaker low |
| Viscosity Accuracy (FSR) | 1 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 93.7 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 18746 mPa.s |
| Min. FSR match ROTAVISC me-vi | 1000.0 mPa.s |
| Max. FSR match ROTAVISC me-vi | 200000.0 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 2000.0 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 400000 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 8000 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 1600000 mPa.s |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) | 32 x 135 x 32 mm |
| Weight | 0.020 kg |
| Permissible ambient temperature | 5 – 40 °C |
