T-SP-1
T-SP-1

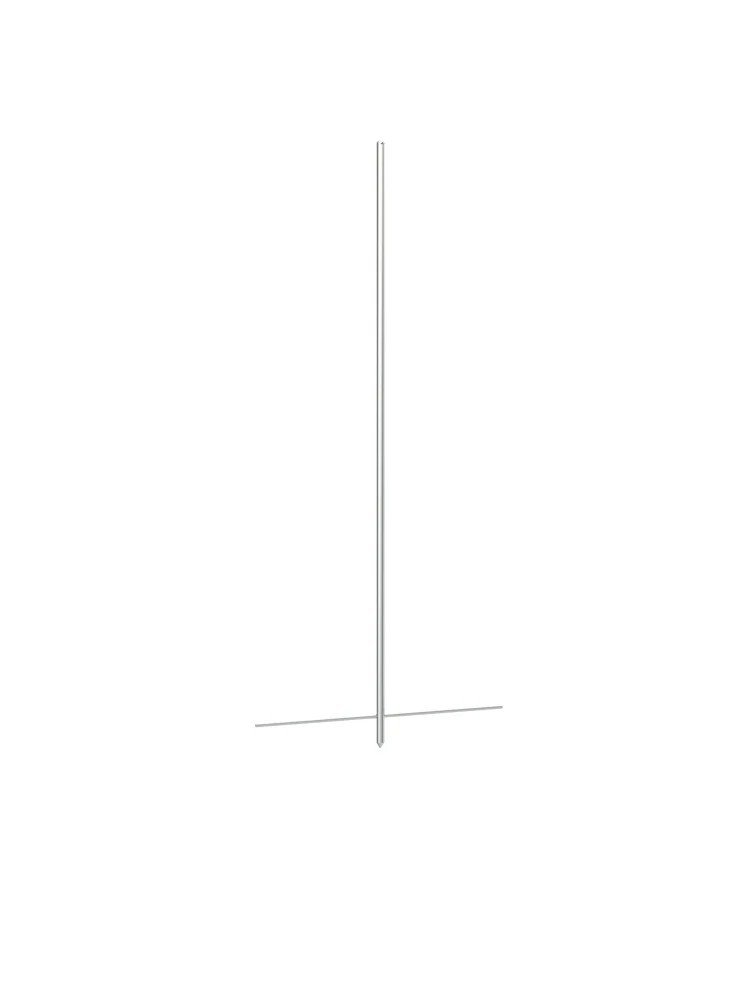

Single T-SP-1 spindle.
The spindle can only be used in combination with the motorized stand HELISTAND as well as the respective nut and coupling.
The complete T-SP-SET with nut and coupling is included with the HELISTAND Set and all ROTAVISC HELI Packages.
T-spindles used in combination with the motorized stand HELISTAND are particularly suitable for the measurement of non-flowing samples, such as creams, pastes or gelatin.
Technical Data
| Spindle geometry | T-bar |
| Connection | Thread M2.5 LH |
| Diameter | 48.1 mm |
| Spindle length | 114.3 mm |
| Mounting Bracket | yes |
| Sample container: | 600mL beaker low |
| Viscosity Accuracy (FSR) | 1 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 93.73 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 18746 mPa.s |
| Min. FSR match ROTAVISC me-vi | 1000 mPa.s |
| Max. FSR match ROTAVISC me-vi | 200000 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 2000 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 400000 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 8000 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 1600000 mPa.s |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) | 50 x 116 x 50 mm |
| Weight | 0.002 kg |
| Permissible ambient temperature | 5 – 40 °C |
